Rear-axle seal kit, Top quality. For swing axle and I.R.S & Formula Vee–2 Pcs
| Application | Engine | Model Year |
|---|---|---|
| VW 181 | 1.5-1.6 | 09/69-02/73 |
| VW Karmann Ghia | 1.2-1.6 | 09/56-07/67 |
| VW Transporter T1 | 1.2-1.5 | 01/50-07/67 |
| VW Type 1 | 1.2-1.6 | 12/47-12/86 |
| VW Type 3 | 1.5-1.6 | 04/61-07/67 |
| Wescom No.: | |
| OE No. | 311598051S |
| Old No. | |
| EAN Code | 5710412612870 |
| Packing Unit | 1 |
| Weight (kg) | 0.04 |
| Depth (mm) | 25.00 |
| Width (mm) | 150.00 |
| Height (mm) | 100.00 |
Torque axle nut to 250 Ft Lbs then pull up to 275 appx to set the split pin position

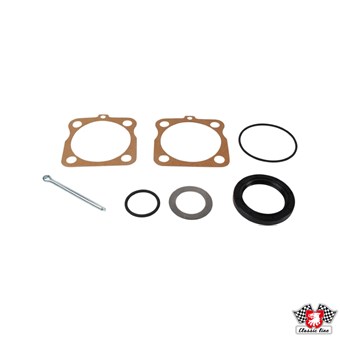

This set includes:
– Seal 113501315H x1
– O Ring 113501291A x1
– O Ring 111501296 x1
– Cotter Pin N..012548-1 x1
– Gasket 211501315 x2
– Washer 111501286 x1
